Product advantages:

1. This machine is suitable for punching building aluminum formwork floor panels, wall panels, female corners, keels and corner aluminum. One punch can punch up to 30 holes, and the spacing is 50mm and 50mm multiples are adjustable.

2. There is no need to disassemble the punching needle, and there is no need to disassemble the punching needle when changing the hole spacing.

3. The punching needle is guided by a withdrawal plate to ensure that the punching needle is in the center of the die core and increase the service life of the lower die sleeve of the punching needle.

4. Punching step design, with built-in automatic alignment, ensures that the punching needle is punched vertically, ensures that the punching die core is always concentric, does not interfere with the die core, avoids the punching needle breakage, avoids the deformation of the return plate and lower die, and affects the service life of discharge.

5. The tip-shaped design of the punching needle forms a vertical punching force and a horizontal shear force during punching; After the force is dispersed, it is more labor-saving, the hydraulic system heats up slowly, and the discharge is more powerful.

6. The hydraulic system uses a 40YCY14-1B axial piston pump, which has a faster cylinder speed and improves production efficiency. The punching completion time is 4 seconds.

7. Disassembly-free punching needle pull-out block is designed with advance and retreat spring buckles. When the pull-out block is opened or closed, the buckle will automatically get stuck. When the punching vibrates, it is ensured that it will not shift to avoid position deviation, causing the punching needle to be crushed and the mechanical equipment to be damaged.

8. There is no need to disassemble the return plate when replacing the lower mold sleeve. You only need to remove the pad under the return plate and replace it, which greatly saves replacement time.

9. This row of punching can meet the minimum U50 template punching.

10. The upgraded discharge flush is equipped with a safety protection device. If the worker's hands or other sundries reach inside between the upper and lower molds, the equipment will stop working. This can completely protect the worker's safety, and the mold will not be crushed due to sundries inside the equipment mold.

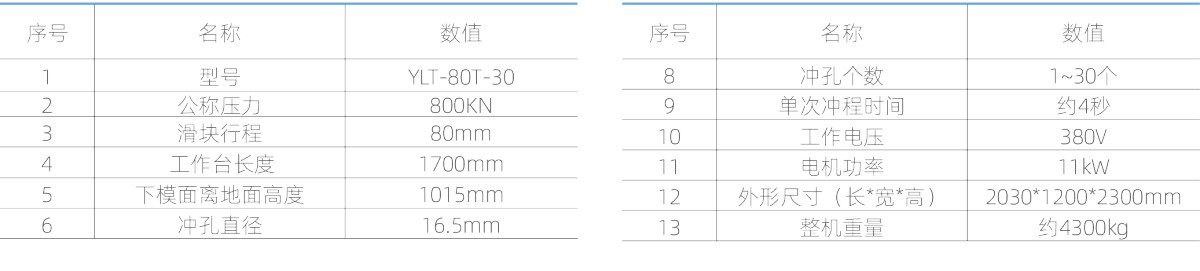

Main technical parameters:
